몬스터애니메이션 컨트롤러 초기

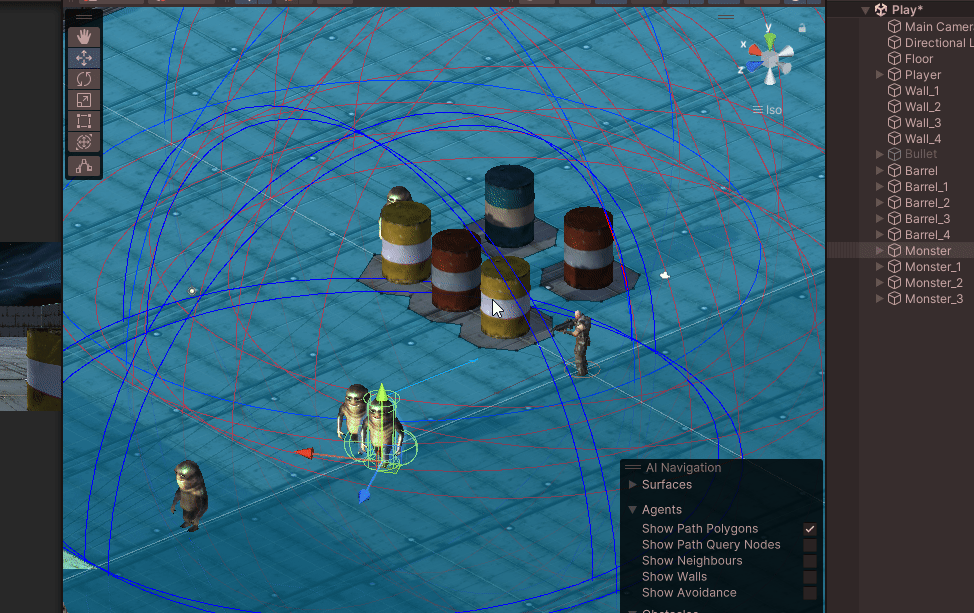

몬스터 추적범위와 스태이트 변경
몬스터애니메이션컨트롤러 Hit

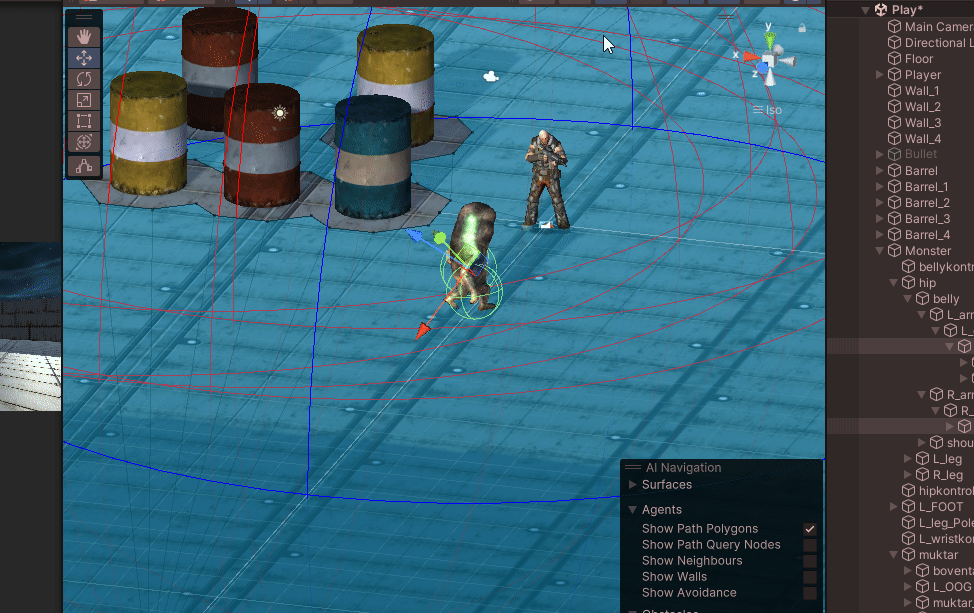

몬스터 추적 후 어택

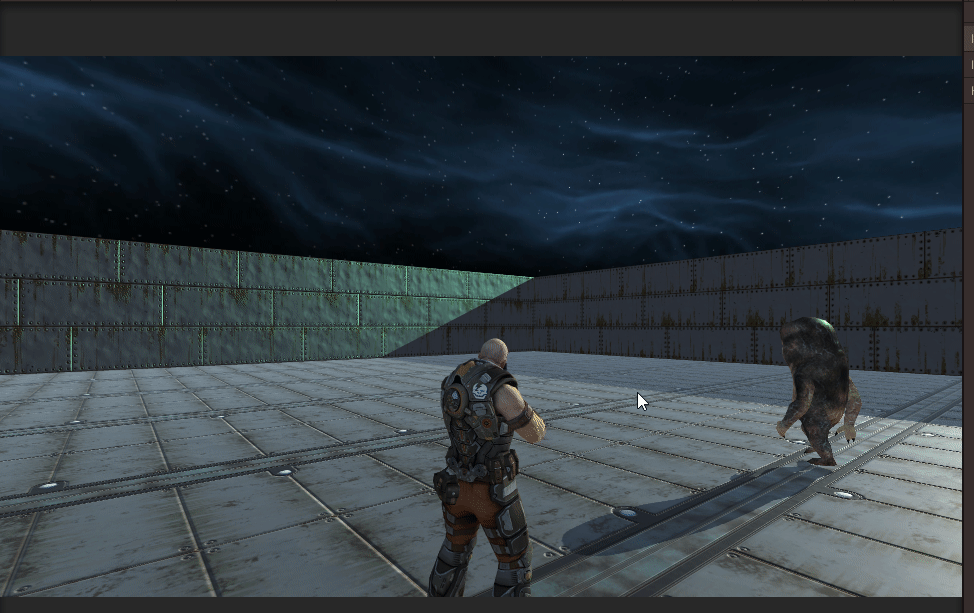

몬스터 피격 애니메이션
몬스터 피격 시 출혈
플레이어 사망시 몬스터 춤

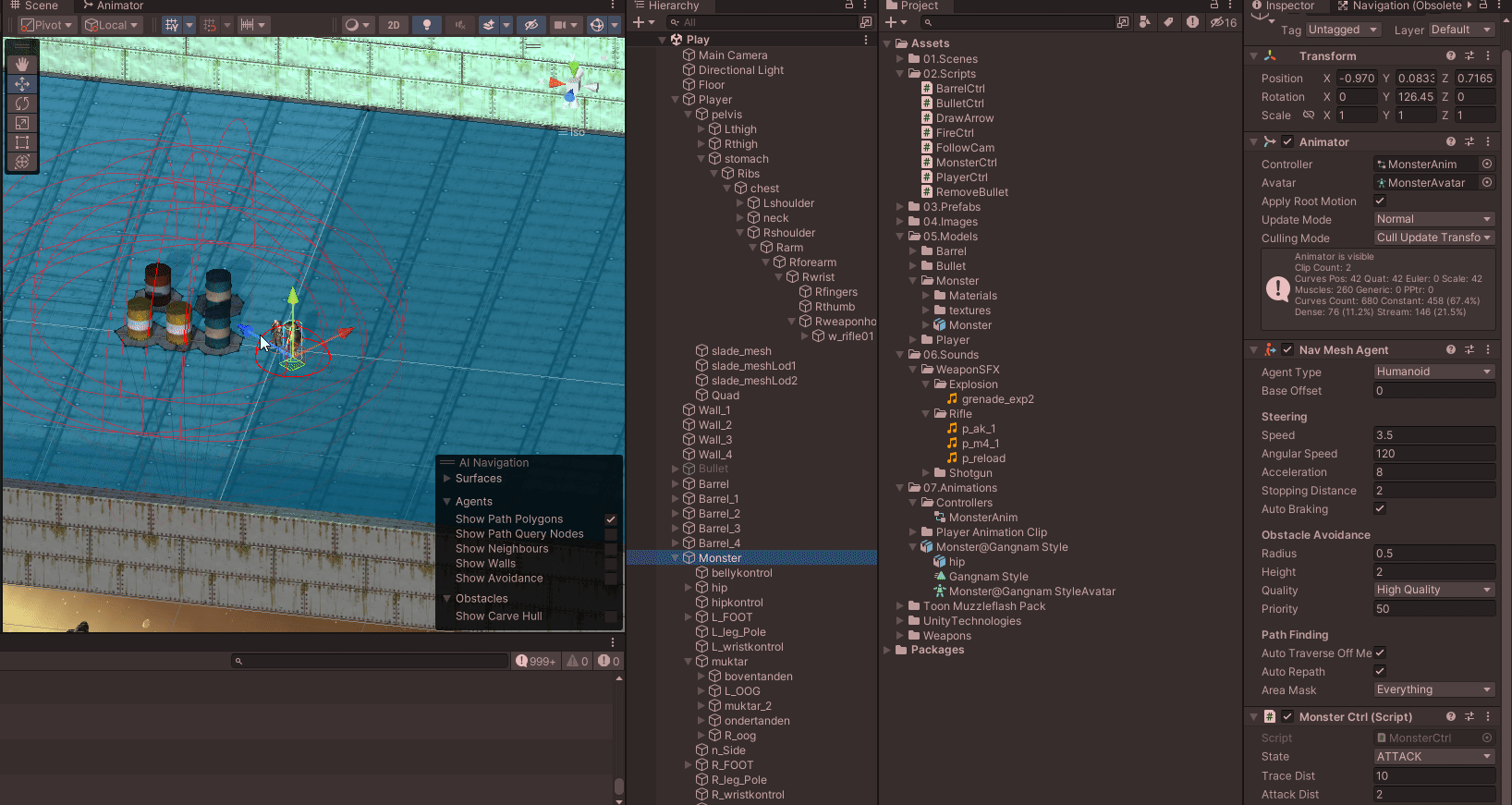

적 사망시 죽는 애니메이션
6(1).적 사망시 죽는 애니메이션.mp4
3.94MB
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEditor.Experimental.GraphView;
using UnityEngine;
public class PlayerCtrl : MonoBehaviour
{
private Transform tr;
public float moveSpeed = 10.0f;
public float turnSpeed = 80.0f;
private Animation anim;
private readonly float initHp = 100f;
public float currentHp;
public delegate void PlayerDieHandler(); //대리자 정의
public static event PlayerDieHandler OnPlayerDie; //이벤트 변수 정의
private void Awake()
{
//제일먼저 호출되는 함수
//스크리브가 비활성화되있어도 호출되는 함수
}
private void OnEnable()
{
//두번째로 호출되는 함수
//스크립트가 활성화 될때마다 호출되는 함수
}
IEnumerator Start()
{
this.currentHp = this.initHp;
// 세번째로 호출되는 함수
//Update함수가 호출되기 전에 호출되는 함수
//코루틴으로 호출될수 있는 함수
//예)
//IEnumerator Start(){}
tr = GetComponent<Transform>();
this.anim = GetComponent<Animation>();
//이름으로 실행 하거나
this.anim.Play("Idle");
//이름으로 가져와서 플레이 하거나
//this.anim.clip = this.anim.GetClip("Idle");
//this.anim.Play();
this.turnSpeed = 0f;
yield return new WaitForSeconds(0.3f);
this.turnSpeed = 80f;
}
private void FixedUpdate()
{
//일정간격으로 호출되는 함수 (기본값은 0.02초)
//물리엔진의 계산 주기와 일치
}
void Update()
{
//프레임마다 호출되는 함수
//호출 간격이 불규칙하다
//화면의 렌더링 주기와 일치 함
float h = Input.GetAxis("Horizontal"); // -1.0 ~ 0 ~ 1
float v = Input.GetAxis("Vertical"); // -1.0 ~ 0 ~ 1
float r = Input.GetAxis("Mouse X");
//Debug.Log("h=" + h);
//Debug.Log("v=" + v);
Debug.Log("r=" + r);
//this.tr.Translate(Vector3.forward * 1 * 0.01f , Space.Self); //로컬좌표 기준으로 이동
//this.tr.Translate(Vector3.forward * 1 * Time.deltaTime, Space.World); //월드좌표 기준으로 이동
//매 프레임마다 1유닛씩 이동 => 0.02초
//this.tr.Translate(Vector3.forward * 1 * Time.deltaTime);
//매 초마다 1유닛씩 이동
//프레임 레이트가 서로다른 기기에서도 개발자가 지정한 일정한 속도로 이동하기 위함
//this.tr.Translate(Vector3.forward * v * Time.deltaTime * moveSpeed); //방향 * 속도 * 시간 => forward = (0,0,1) // v => -1~ 1 사이의 값 => v를 사용해서 앞뿐만이 아닌 뒤로도 이동가능
//전후좌우 이동방향 벡터 계산
Vector3 moveDir = (Vector3.forward * v) + (Vector3.right * h); // right = (1,0,0)
//방향 * 속도 * 시간
this.tr.Translate(moveDir.normalized * moveSpeed * Time.deltaTime);
//Vector3.up 축으로 turnSpeed만큼
this.tr.Rotate(Vector3.up * r * this.turnSpeed);
//캐릭터 애니메이션 실행
PlayerAnim(h, v);
}
private void LateUpdate()
{
//Update함수가 종료된 후 호출 되는 함수
}
private void PlayerAnim(float h, float v)
{
//키보드 입력값을 기준으로 동작할 애니메이션 실행
if (v >= 0.1f)
{
//0.25f초간 이전 애니메이션과 실행할 애니메이션을 보간
this.anim.CrossFade("RunF", 0.25f); //전진 애니메이션 실행
}
else if (v <= -0.1f)
{
this.anim.CrossFade("RunB", 0.25f);//후진
}
else if (h >= 0.1f)
{
this.anim.CrossFade("RunR", 0.25f);//오른쪽
}
else if (h <= -0.1f)
{
this.anim.CrossFade("RunL", 0.25f);//왼쪽
}
else
{
this.anim.CrossFade("Idle", 0.25f);//기본
}
}
private void OnTriggerEnter(Collider other)
{
if(this.currentHp >= 0f && other.CompareTag("Punch"))
{
this.currentHp -= 10f;
Debug.Log($"Player hp = {currentHp / initHp}");
if (this.currentHp <= 0f)
{
this.PlayerDie();
}
}
}
private void PlayerDie()
{
Debug.Log("Player Die!");
////Monster 태그를 가진 오브젝트들을 검색
//GameObject[] monsters = GameObject.FindGameObjectsWithTag("Monster");
////모든 몬스터의 OnplayerDie함수실행
//foreach(GameObject monster in monsters)
//{
// monster.SendMessage("OnPlayerDie", SendMessageOptions.RequireReceiver);
//}
PlayerCtrl.OnPlayerDie(); //ㄷ대리차 호출(이벤트 발생 Dispatch)
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class BulletCtrl : MonoBehaviour
{
public float damage = 20.0f;
public float force = 1500f;
private Rigidbody rb;
void Start()
{
this.rb = this.GetComponent<Rigidbody>();
this.rb.AddForce(this.transform.forward * force);
Destroy(gameObject, 3f);
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class FollowCam : MonoBehaviour
{
public Transform targetTr;
private Transform camTr;
//대상으로 부터 떨어질 거리
[Range(2.0f, 20.0f)]
public float distance = 10.0f;
//Y축으로 이동할 높이
[Range(0.0f, 10.0f)]
public float height = 2.0f;
//반응속도
public float damping = 10f;
//SmoothDamp에 사용할 속도 변수
private Vector3 velocity = Vector3.zero;
//카메라 LookAt OffSet
public float targetOffset = 2.0f;
void Start()
{
this.camTr = GetComponent<Transform>(); //Transform 객체 캐싱
}
private void LateUpdate()
{
//추적할 대상의 뒤쪽 distance만큼 이동
//높이를 height만큼 이동
Vector3 pos = this.targetTr.position +
(-targetTr.forward * distance) +
(Vector3.up * height);
//구면 선형 보간 함수를 사용해 부드럽게 위치를 변경
//시작위치, 목표 위치, 시간
//this.camTr.position = Vector3.Slerp(this.camTr.position, pos, Time.deltaTime * damping);
//시작위치, 목표위치, 현재속도, 목표 위치까지 도달할 시간
this.camTr.position = Vector3.SmoothDamp(this.camTr.position, pos, ref velocity, damping);
//Camera를 피벗 좌표를 향해 회전
this.camTr.LookAt(this.targetTr.position + (targetTr.up * targetOffset));
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class FireCtrl : MonoBehaviour
{
public GameObject bulletPrefab;
public Transform firePoint;
public AudioClip fireSfx;
private AudioSource audioSource;
private MeshRenderer muzzleFlash;
private Coroutine muzzleFlashCoroutine;
private void Start()
{
audioSource = GetComponent<AudioSource>();
muzzleFlash = this.firePoint.GetComponentInChildren<MeshRenderer>();
muzzleFlash.enabled = false;
}
void Update()
{
if (Input.GetMouseButtonDown(0))
{
this.Fire();
}
}
private void Fire()
{
Instantiate(bulletPrefab, firePoint.position, firePoint.rotation);
audioSource.PlayOneShot(fireSfx, 1f);
if (muzzleFlashCoroutine != null) StopCoroutine(muzzleFlashCoroutine);
this.muzzleFlashCoroutine = StartCoroutine(this.ShowMuzzleFlash());
}
IEnumerator ShowMuzzleFlash()
{
Vector2 offset = new Vector2(Random.Range(0, 2), Random.Range(0, 2)) * 0.5f;
muzzleFlash.material.mainTextureOffset = offset;
float angle = Random.Range(0, 360);
muzzleFlash.transform.localRotation = Quaternion.Euler(0, 0, angle);
float scale = Random.Range(1, 2);
muzzleFlash.transform.localScale = Vector3.one * scale;
muzzleFlash.enabled = true; //보여주기
yield return new WaitForSeconds(0.2f); //0.2초후
muzzleFlash.enabled = false; //안보여주기
}
}
using UnityEngine;
using System.Collections;
using UnityEditor;
public enum ArrowType
{
Default,
Thin,
Double,
Triple,
Solid,
Fat,
ThreeD,
}
public static class DrawArrow
{
public static void ForGizmo(Vector3 pos, Vector3 direction, Color? color = null, bool doubled = false, float arrowHeadLength = 0.2f, float arrowHeadAngle = 20.0f)
{
Gizmos.color = color ?? Color.white;
//arrow shaft
Gizmos.DrawRay(pos, direction);
if (direction != Vector3.zero)
{
//arrow head
Vector3 right = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180 + arrowHeadAngle, 0) * new Vector3(0, 0, 1);
Vector3 left = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180 - arrowHeadAngle, 0) * new Vector3(0, 0, 1);
Gizmos.DrawRay(pos + direction, right * arrowHeadLength);
Gizmos.DrawRay(pos + direction, left * arrowHeadLength);
}
}
public static void ForDebug(Vector3 pos, Vector3 direction, float duration = 0.5f, Color? color = null, ArrowType type = ArrowType.Default, float arrowHeadLength = 0.2f, float arrowHeadAngle = 30.0f, bool sceneCamFollows = false)
{
Color actualColor = color ?? Color.white;
duration = duration / Time.timeScale;
float width = 0.01f;
Vector3 directlyRight = Vector3.zero;
Vector3 directlyLeft = Vector3.zero;
Vector3 directlyBack = Vector3.zero;
Vector3 headRight = Vector3.zero;
Vector3 headLeft = Vector3.zero;
if (direction != Vector3.zero)
{
directlyRight = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180 + 90, 0) * new Vector3(0, 0, 1);
directlyLeft = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180 - 90, 0) * new Vector3(0, 0, 1);
directlyBack = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180, 0) * new Vector3(0, 0, 1);
headRight = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180 + arrowHeadAngle, 0) * new Vector3(0, 0, 1);
headLeft = Quaternion.LookRotation(direction) * Quaternion.Euler(0, 180 - arrowHeadAngle, 0) * new Vector3(0, 0, 1);
}
//draw arrow head
Debug.DrawRay(pos + direction, headRight * arrowHeadLength, actualColor, duration);
Debug.DrawRay(pos + direction, headLeft * arrowHeadLength, actualColor, duration);
switch (type)
{
case ArrowType.Default:
Debug.DrawRay(pos, direction, actualColor, duration); //draw center line
break;
case ArrowType.Double:
Debug.DrawRay(pos + directlyRight * width, direction * (1 - width), actualColor, duration); //draw line slightly to right
Debug.DrawRay(pos + directlyLeft * width, direction * (1 - width), actualColor, duration); //draw line slightly to left
//draw second arrow head
Debug.DrawRay(pos + directlyBack * width + direction, headRight * arrowHeadLength, actualColor, duration);
Debug.DrawRay(pos + directlyBack * width + direction, headLeft * arrowHeadLength, actualColor, duration);
break;
case ArrowType.Triple:
Debug.DrawRay(pos, direction, actualColor, duration); //draw center line
Debug.DrawRay(pos + directlyRight * width, direction * (1 - width), actualColor, duration); //draw line slightly to right
Debug.DrawRay(pos + directlyLeft * width, direction * (1 - width), actualColor, duration); //draw line slightly to left
break;
case ArrowType.Fat:
break;
case ArrowType.Solid:
int increments = 20;
for (int i = 0; i < increments; i++)
{
float displacement = Mathf.Lerp(-width, +width, i / (float)increments);
//draw arrow body
Debug.DrawRay(pos + directlyRight * displacement, direction, actualColor, duration); //draw line slightly to right
Debug.DrawRay(pos + directlyLeft * displacement, direction, actualColor, duration); //draw line slightly to left
//draw arrow head
Debug.DrawRay((pos + direction) + directlyRight * displacement, headRight * arrowHeadLength, actualColor, duration);
Debug.DrawRay((pos + direction) + directlyRight * displacement, headLeft * arrowHeadLength, actualColor, duration);
}
break;
case ArrowType.Thin:
Debug.DrawRay(pos, direction, actualColor, duration); //draw center line
break;
case ArrowType.ThreeD:
break;
}
/*#if UNITY_EDITOR
//snap the Scene view camera to a spot where it is looking directly at this arrow.
if (sceneCamFollows)
SceneViewCameraFollower.activateAt(pos + direction, duration, "_arrow");
#endif*/
}
public static void randomStar(Vector3 center, Color color)
{
//special: refuse to draw at 0,0.
if (center == Vector3.zero) return;
for (int i = 0; i < 2; i++)
DrawArrow.ForGizmo(center, UnityEngine.Random.onUnitSphere * 1, color, false, 0.1f, 30.0f);
}
public static void comparePositions(Transform t1, Transform t2)
{
//direct from one to the other:
ForDebug(t1.position, t2.position - t1.position);
//direction
//Vector3 moveDirection = (t2.position-t1.position).normalized;
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class RemoveBullet : MonoBehaviour
{
public GameObject sparkEffectPrefab;
private void OnCollisionEnter(Collision collision)
{
if (collision.collider.CompareTag("Bullet"))
{
//첫번째 충돌 지점의 정보 추출
ContactPoint contactPoint = collision.contacts[0];
DrawArrow.ForDebug(contactPoint.point, -contactPoint.normal, 10, Color.red);
//충돌한 총알의 법선 벡터를 쿼터니언으로 변환
Quaternion rot = Quaternion.LookRotation(-contactPoint.normal);
Instantiate(this.sparkEffectPrefab, contactPoint.point, rot);
Destroy(collision.gameObject);
}
}
}
using UnityEngine;
public class BarrelCtrl : MonoBehaviour
{
private int hitCount = 0;
private Transform trans;
private Rigidbody rb;
public GameObject explosionPrefab;
public Texture[] textures;
private new MeshRenderer renderer;
//폭발 반경
public float radius = 10f;
void Start()
{
this.trans = this.GetComponent<Transform>();
this.rb = this.GetComponent<Rigidbody>();
//자식에 있는 랜더러 컴포넌트를 찾아옴
this.renderer = this.GetComponentInChildren<MeshRenderer>();
//난수 발생
int index = Random.Range(0, this.textures.Length);
//텍스쳐 변경
this.renderer.material.mainTexture = textures[index];
}
private void OnCollisionEnter(Collision collision)
{
if (collision.collider.CompareTag("Bullet"))
{
if (++hitCount == 3)
{
ExplodeBarrel();
}
}
}
private void ExplodeBarrel()
{
//폭파 이펙트를 생성
GameObject exp = Instantiate(explosionPrefab, this.trans.position, Quaternion.identity);
//이펙트 5초 있다가 제거
Destroy(exp, 5.0f);
//힘을 위로 가함
//this.rb.mass = 1.0f; //질량을 줄여주고
//this.rb.AddForce(Vector3.up * 1500); //위로 힘을 가한다
//간접 폭발력 전달
IndirectDamage(this.trans.position);
//3초후 드럼통 제거
Destroy(this.gameObject, 3);
}
private void IndirectDamage(Vector3 pos)
{
//주변에 있는 드럼통들을 모두 추출
Collider[] colls = Physics.OverlapSphere(pos, this.radius, 1 << 3);
foreach (var coll in colls)
{
var rb = coll.GetComponent<Rigidbody>();
rb.mass = 1.0f;
rb.constraints = RigidbodyConstraints.None;
rb.AddExplosionForce(1500, pos, radius, 1200);
}
}
private void OnDrawGizmos()
{
Gizmos.color = Color.red;
Gizmos.DrawWireSphere(this.transform.position, this.radius);
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.AI;
public class MonsterCtrl : MonoBehaviour
{
public enum State
{
IDLE, TRACE, ATTACK, DIE //ctrl+shift+u : 대문자로 변경
}
public State state = State.IDLE;
public float traceDist = 10f; //추적 사정거리
public float attackDist = 2.0f;//공격 사거리
public bool isDie = false;//몬스터 사망여부
private int hp = 100; //몬스터 체력
private NavMeshAgent agent;
private Transform playerTrans;
private Animator anim;
private GameObject bloodEffectPrefab;
private readonly int hashTrace = Animator.StringToHash("IsTrace");
private readonly int hashAttack = Animator.StringToHash("IsAttack");
private readonly int hashHit = Animator.StringToHash("Hit");
private readonly int hashPlayerDie = Animator.StringToHash("PlayerDie");
private readonly int hashSpeed = Animator.StringToHash("Speed");
private readonly int hashDie = Animator.StringToHash("Die");
private void OnEnable()
{
PlayerCtrl.OnPlayerDie += this.OnPlayerDie;
}
void Start()
{
//플레이어를 찾아아서 이동한다.
this.agent = GetComponent<NavMeshAgent>();
//프리팹을 로드한다
this.bloodEffectPrefab = Resources.Load<GameObject>("BloodSprayEffect");
this.playerTrans = GameObject.FindWithTag("Player").transform;
this.anim = GetComponent<Animator>();
//이동한다
this.agent.SetDestination(this.playerTrans.position);
//몬스터의 상태를 체크 하는 코루틴
this.StartCoroutine(CheckMonsterState());
//상태에 따라 몬스터의 행동을 수행하는 코루틴
this.StartCoroutine(this.MonsterAction());
}
IEnumerator MonsterAction()
{
while(!this.isDie)
{
switch (this.state)
{
case State.IDLE:
agent.isStopped = true; //추적정지
this.anim.SetBool(hashTrace, false);
break;
case State.TRACE:
agent.SetDestination(this.playerTrans.position);
agent.isStopped = false; //추적을 재개
this.anim.SetBool(hashTrace, true);
this.anim.SetBool(hashAttack, false);
break;
case State.ATTACK:
this.anim.SetBool(hashAttack, true);
break;
case State.DIE:
this.isDie = true;
agent.isStopped = true;
anim.SetTrigger(hashDie);
GetComponent<CapsuleCollider>().enabled = false;
break;
}
yield return new WaitForSeconds(0.3f);
}
}
IEnumerator CheckMonsterState()
{
while(!this.isDie)
{
yield return new WaitForSeconds(0.3f);
//몬스터 상태가 죽었을 때 코루틴을 즉시 종료
if(state == State.DIE)
{
yield break; //코루틴을 즉시 종료
}
//거리 측정
float distance = Vector3.Distance(this.transform.position, playerTrans.position);
//공격 사거리 측정
if(distance <= attackDist)
{
state = State.ATTACK;
}
else if(distance <= traceDist) //시야에 들어오면
{
state = State.TRACE;
}
else //공격 사거리에도 안들어오고 시야에도 없다
{
state = State.IDLE;
}
}
}
private void OnCollisionEnter(Collision collision)
{
if (collision.collider.CompareTag("Bullet"))
{
Destroy(collision.gameObject);
anim.SetTrigger(this.hashHit);
//충돌 지점을 가져온다.
ContactPoint cp = collision.GetContact(0);
Vector3 pos = cp.point;
//충돌지점의 법선벡터(Noraml Vector)의 반대 방향으로 가져온다.
//피격시 피가 튀기는 방향을 조절한다.
Quaternion rot = Quaternion.LookRotation(-cp.normal);
//이펙트를 생성
this.ShowBloodEffect(pos, rot);
hp -= 10;
if(hp <= 0)
{
state = State.DIE;
}
}
}
void ShowBloodEffect(Vector3 pos, Quaternion rot)
{
//프리팹의 인스턴스화 게임인스턴스, 위치, 회전, 부모
GameObject blood = Instantiate(this.bloodEffectPrefab, pos, rot, this.transform);
Destroy(blood, 1.0f);
}
private void OnDrawGizmos()
{
if(state == State.TRACE)
{
Gizmos.color = Color.blue;
Gizmos.DrawWireSphere(transform.position, traceDist);
}
if (state == State.ATTACK)
{
Gizmos.color = Color.red;
Gizmos.DrawWireSphere(transform.position, attackDist);
}
}
public void OnPlayerDie()
{
this.StopAllCoroutines();
agent.isStopped = true;
anim.SetFloat(hashSpeed, Random.Range(0.8f, 1.2f));
anim.SetTrigger(hashPlayerDie);
}
private void OnDisable()
{
//이벤트 리스너를 제거
PlayerCtrl.OnPlayerDie -= this.OnPlayerDie;
}
}'산대특 > 게임 클라이언트 프로그래밍' 카테고리의 다른 글
| Occlusion Culling (0) | 2024.03.18 |
|---|---|
| Sprite Shooter - Destroy Barrel and Layer (0) | 2024.03.13 |
| Zombie - IK (0) | 2024.03.07 |
| Zombie - Line Render (0) | 2024.03.07 |
| Tank - Rigidbody.MovePosition (0) | 2024.03.06 |
