VR Setting 문제

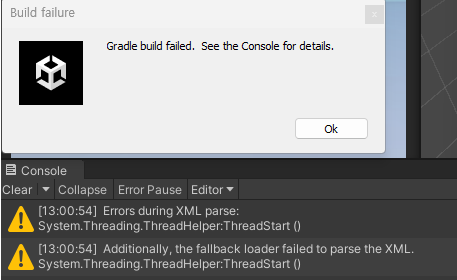

VR 셋팅시 오류가 발생

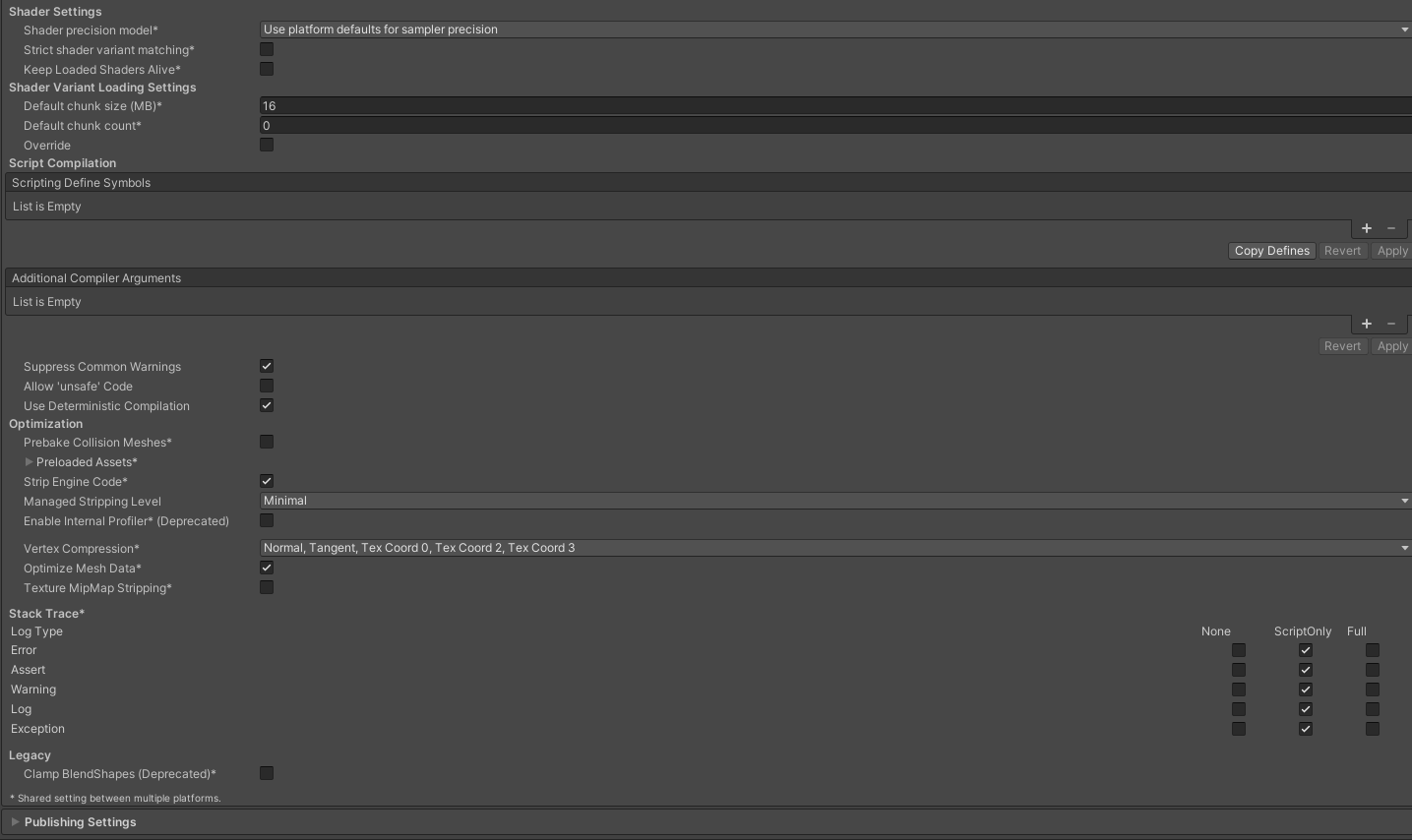

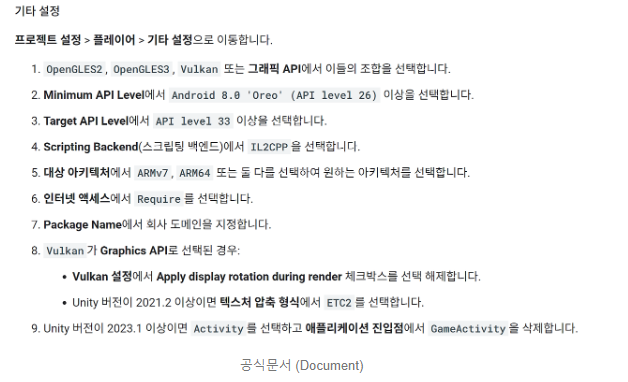

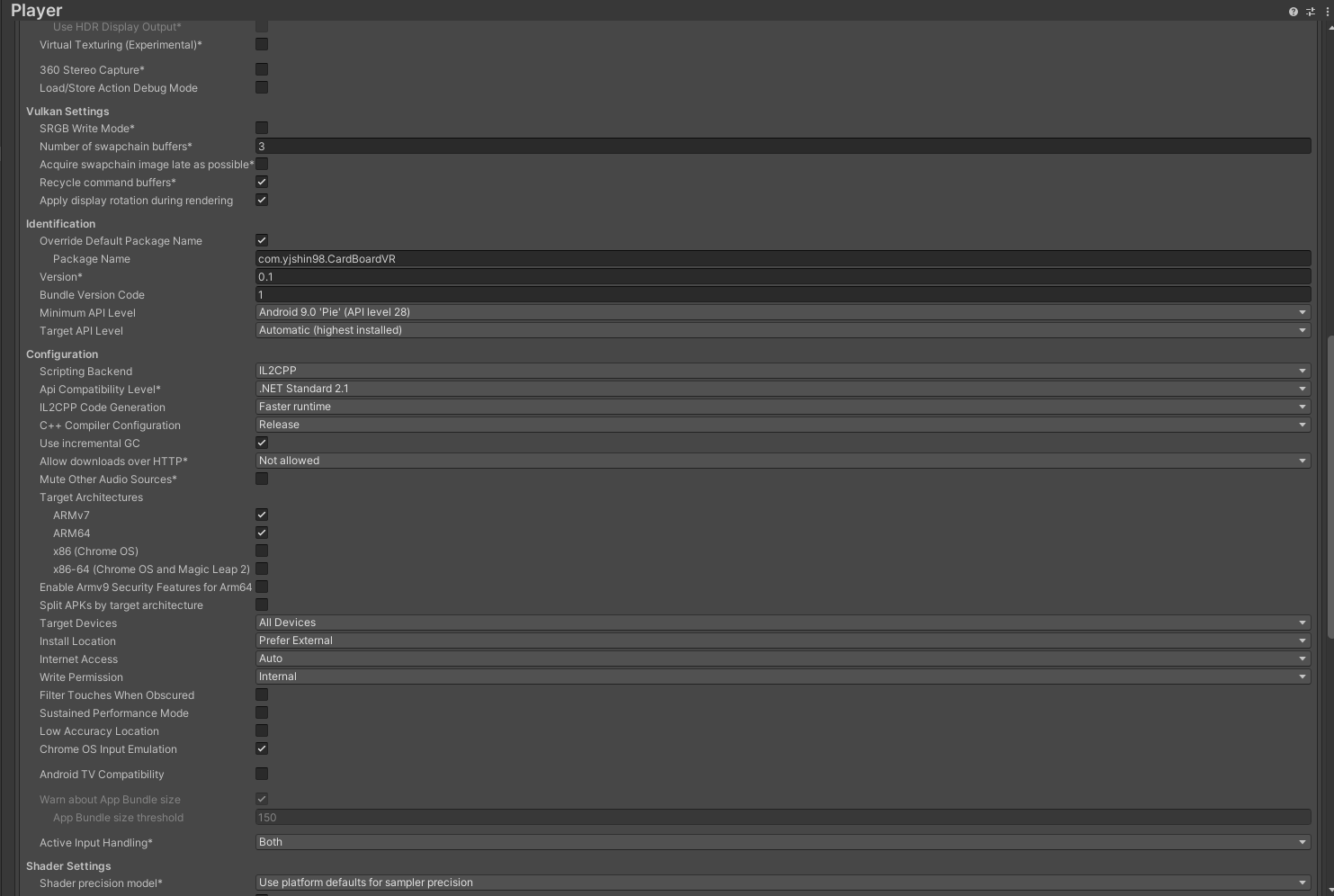

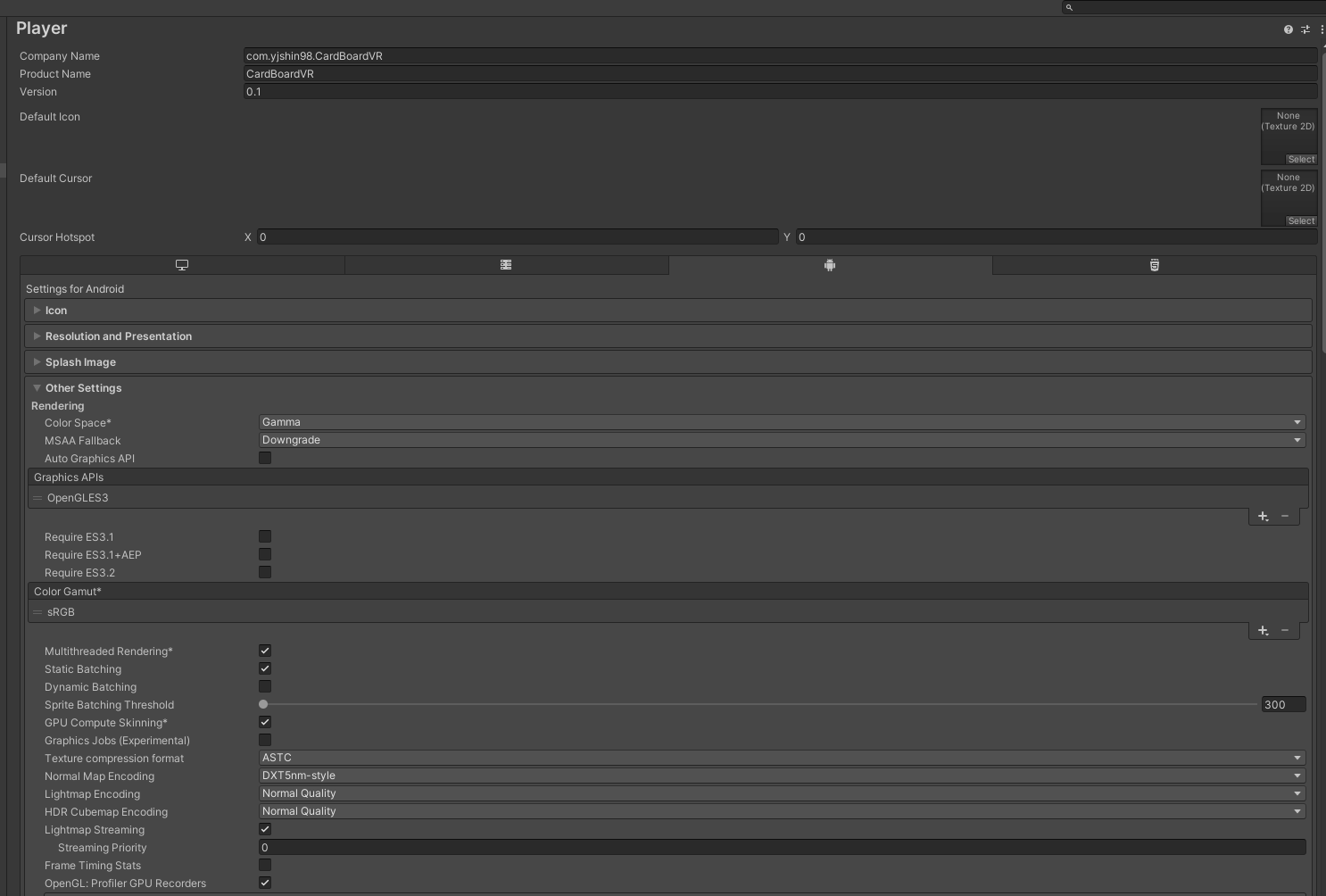

Project Settings - Player - Other Settings

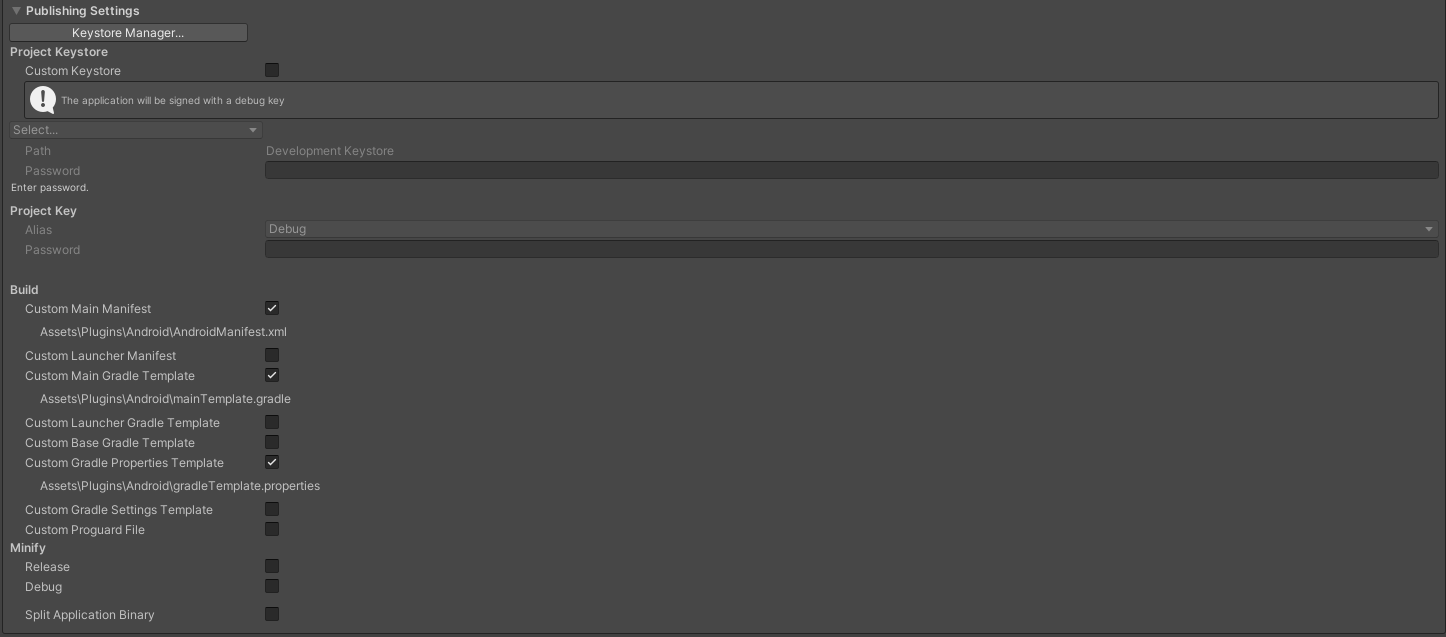

Publishing Settings



그 후 스크립트를 수정한다







//-----------------------------------------------------------------------
// <copyright file="CardboardStartup.cs" company="Google LLC">
// Copyright 2020 Google LLC
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// </copyright>
//-----------------------------------------------------------------------

using Google.XR.Cardboard;
using UnityEngine;

/// <summary>
/// Initializes Cardboard XR Plugin.
/// </summary>
public class CardboardStartup : MonoBehaviour
{
    /// <summary>
    /// Start is called before the first frame update.
    /// </summary>
    public void Start()
    {
        // Configures the app to not shut down the screen and sets the brightness to maximum.
        // Brightness control is expected to work only in iOS, see:
        // https://docs.unity3d.com/ScriptReference/Screen-brightness.html.
        Screen.sleepTimeout = SleepTimeout.NeverSleep;
        Screen.brightness = 1.0f;

        // Checks if the device parameters are stored and scans them if not.
        if (!Api.HasDeviceParams())
        {
            Api.ScanDeviceParams();
        }
    }

    /// <summary>
    /// Update is called once per frame.
    /// </summary>
    public void Update()
    {
        if (Api.IsGearButtonPressed)
        {
            Api.ScanDeviceParams();
        }

        if (Api.IsCloseButtonPressed)
        {
            Application.Quit();
        }

        if (Api.IsTriggerHeldPressed)
        {
            Api.Recenter();
        }

        if (Api.HasNewDeviceParams())
        {
            Api.ReloadDeviceParams();
        }

#if !UNITY_EDITOR
        Api.UpdateScreenParams();
#endif
    }
}

CardboardStartup.cs



apply plugin: 'com.android.library'
**APPLY_PLUGINS**

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])

    implementation 'androidx.appcompat:appcompat:1.0.0'
    implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
    implementation 'com.google.android.gms:play-services-vision:15.0.2'
    implementation 'com.google.android.material:material:1.0.0'
    implementation 'com.google.protobuf:protobuf-javalite:3.8.0'



**DEPS**}

android {
    ndkPath "**NDKPATH**"

    compileSdkVersion **APIVERSION**
    buildToolsVersion '**BUILDTOOLS**'

    compileOptions {
        sourceCompatibility JavaVersion.VERSION_11
        targetCompatibility JavaVersion.VERSION_11
    }

    defaultConfig {
        minSdkVersion **MINSDKVERSION**
        targetSdkVersion **TARGETSDKVERSION**
        ndk {
            abiFilters **ABIFILTERS**
        }
        versionCode **VERSIONCODE**
        versionName '**VERSIONNAME**'
        consumerProguardFiles 'proguard-unity.txt'**USER_PROGUARD**
    }

    lintOptions {
        abortOnError false
    }

    aaptOptions {
        noCompress = **BUILTIN_NOCOMPRESS** + unityStreamingAssets.tokenize(', ')
        ignoreAssetsPattern = "!.svn:!.git:!.ds_store:!*.scc:!CVS:!thumbs.db:!picasa.ini:!*~"
    }**PACKAGING_OPTIONS**
}
**IL_CPP_BUILD_SETUP**
**SOURCE_BUILD_SETUP**
**EXTERNAL_SOURCES**

mainTemplate



org.gradle.jvmargs=-Xmx**JVM_HEAP_SIZE**M
org.gradle.parallel=true
unityStreamingAssets=**STREAMING_ASSETS**
**ADDITIONAL_PROPERTIES**
android.enableJetifier=true
android.useAndroidX=true

gradleTemplate



<?xml version="1.0" encoding="utf-8"?>
<manifest
    xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.unity3d.player"
    xmlns:tools="http://schemas.android.com/tools">
    <application android:requestLegacyExternalStorage="true">
        <activity android:name="com.unity3d.player.UnityPlayerActivity"
                  android:theme="@style/UnityThemeSelector">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
            <meta-data android:name="unityplayer.UnityActivity" android:value="true" />
        </activity>
    </application>
</manifest>
​

​AndroidManifest





그 후 수정이 다 되었으면

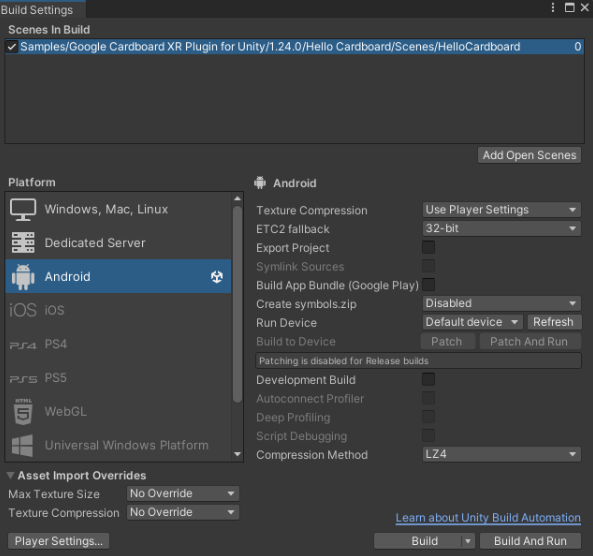

씬을 올리고 (단, 씬이 많으면 빌드되야 할 부분이 맨 위로 올라가야 함)플랫폼 확인하고 build를 한 후저장 위치를 정하면 apk가 만들어진다.
