개발자의 삶

https://www.immersivelimit.com/tutorials/reinforcement-learning-penguins-part-1-unity-ml-agents

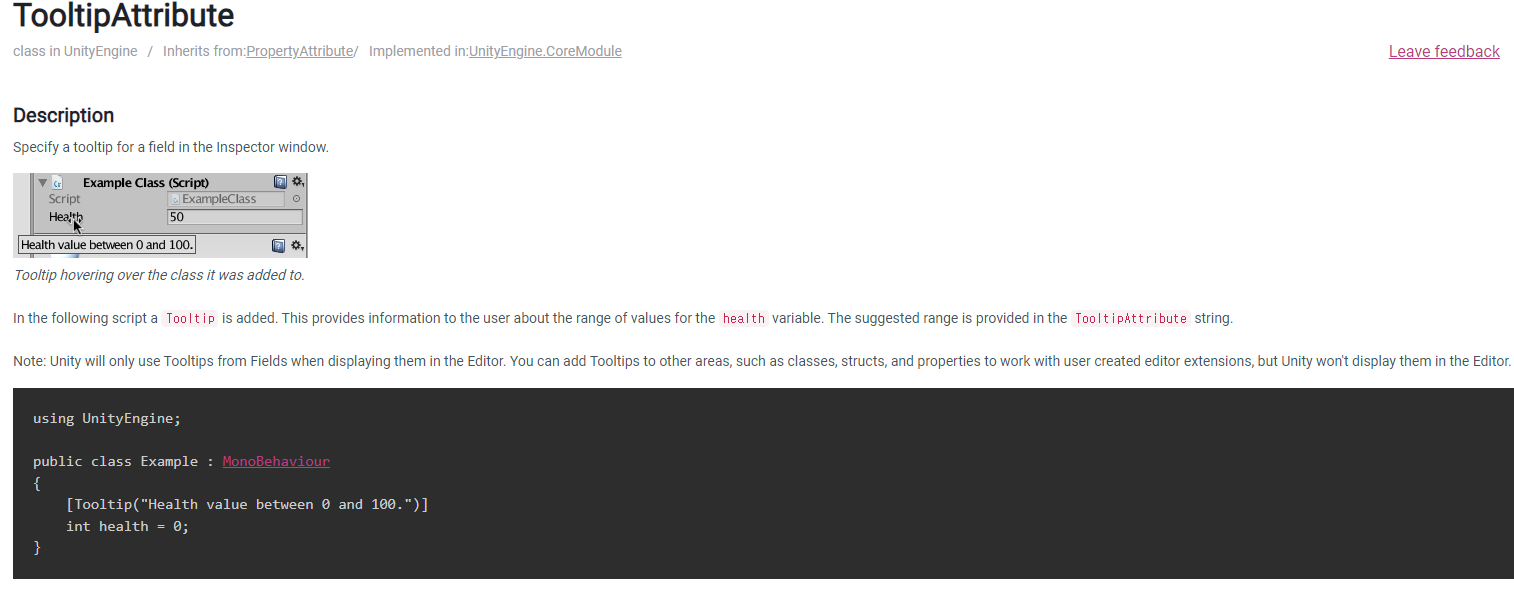

https://docs.unity3d.com/ScriptReference/TooltipAttribute.html

https://docs.unity3d.com/Packages/com.unity.ml-agents@3.0/api/Unity.MLAgents.Agent.GetCumulativeReward.html

using System.Collections;
using System.Collections.Generic;
using UnityEditor;
using UnityEngine;

[CustomEditor(typeof(PenguinArea))]
public class PenguinAreaEditor : Editor
{
    public override void OnInspectorGUI()
    {
        PenguinArea penguinArea = (PenguinArea)target;
        base.OnInspectorGUI();
        if (GUILayout.Button("Choose Random Position"))
        {
            Debug.Log("ChooseRandomPosition");
            Vector3 center = penguinArea.transform.position;
            float minAngle = -15;
            float maxAngle = 15;
            float minRadius = 1;
            float maxRadius = 2;
            Vector3 randPos =
                PenguinArea.ChooseRandomPosition(center, minAngle, maxAngle, minRadius, maxRadius);

            Debug.Log(randPos);

            Debug.DrawLine(center, randPos, Color.red, 10);
        }
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using TMPro;

public class PenguinArea : MonoBehaviour
{
    [Tooltip("The agent inside the area")]
    public PenguinAgent penguinAgent;

    [Tooltip("The baby penguin inside the area")]
    public GameObject penguinBaby;

    [Tooltip("The TextMeshPro text that shows the cumulative reward of the agent")]
    public TextMeshPro cumulativeRewardText;

    [Tooltip("Prefab of a live fish")]
    public Fish fishPrefab;

    private List<GameObject> fishList;

    //씬에 남아 있는 물고기 수

    public int FishRemaining
    {
        get { return fishList.Count; }
    }

    private void Start()
    {
        this.fishList = new List<GameObject>();

        ResetArea();
    }

    private void Update()
    {
        // Update the cumulative reward text

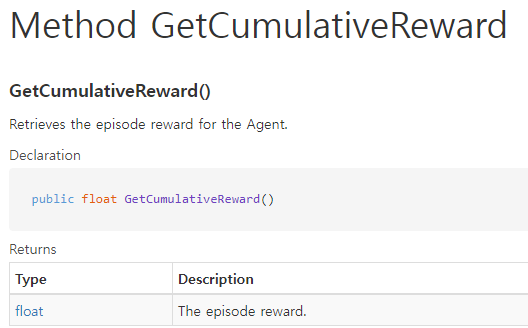

        cumulativeRewardText.text = penguinAgent.GetCumulativeReward().ToString("0.00");
    }


    public void ResetArea()
    {
        RemoveAllFish();
        PlacePenguin();
        PlaceBaby();
        SpawnFish(4, .5f);
    }

    //엄마 펭귄의 이동속도, 회전속도 초기화 및 랜덤위치, 랜덤회전
    private void PlacePenguin()
    {
        Rigidbody rigidbody = penguinAgent.GetComponent<Rigidbody>();
        rigidbody.velocity = Vector3.zero;
        rigidbody.angularVelocity = Vector3.zero;
        penguinAgent.transform.position = ChooseRandomPosition(transform.position, 0f, 360f, 0f, 9f) + Vector3.up * .5f;
        penguinAgent.transform.rotation = Quaternion.Euler(0f, UnityEngine.Random.Range(0f, 360f), 0f);
    }

    private void PlaceBaby()
    {
        Rigidbody rigidbody = penguinBaby.GetComponent<Rigidbody>();
        rigidbody.velocity = Vector3.zero;
        rigidbody.angularVelocity = Vector3.zero;
        penguinBaby.transform.position = ChooseRandomPosition(transform.position, -45f, 45f, 4f, 9f) + Vector3.up * .5f;
        penguinBaby.transform.rotation = Quaternion.Euler(0f, 180f, 0f);
    }


    //물고기를 먹었다면 리스트에서 제거하고 씬에서 제거한다
    public void RemoveSpecificFish(GameObject fishObject)
    {
        fishList.Remove(fishObject);
        Destroy(fishObject);
    }

    public static Vector3 ChooseRandomPosition(Vector3 center, float minAngle, float maxAngle, float minRadius, float maxRadius)
    {
        float radius = minRadius;
        float angle = minAngle;

        if (maxRadius > minRadius)
        {
            // Pick a random radius
            radius = UnityEngine.Random.Range(minRadius, maxRadius);
        }

        if (maxAngle > minAngle)
        {
            // Pick a random angle
            angle = UnityEngine.Random.Range(minAngle, maxAngle);
        }

        // Center position + forward vector rotated around the Y axis by "angle" degrees, multiplies by "radius"
        return center + Quaternion.Euler(0f, angle, 0f) * Vector3.forward * radius;
    }

    //count만큼 fish프리팹 인스턴스 생성, 리스트에 넣기, 이동속도 설정하기
    private void SpawnFish(int count, float fishSpeed)
    {
        for (int i = 0; i < count; i++)
        {
            // Spawn and place the fish
            GameObject fishObject = Instantiate<GameObject>(fishPrefab.gameObject);
            fishObject.transform.position = ChooseRandomPosition(transform.position, 100f, 260f, 2f, 13f) + Vector3.up * .5f;
            fishObject.transform.rotation = Quaternion.Euler(0f, UnityEngine.Random.Range(0f, 360f), 0f);

            // Set the fish's parent to this area's transform
            fishObject.transform.SetParent(transform);

            // Keep track of the fish
            fishList.Add(fishObject);

            // Set the fish speed
            fishObject.GetComponent<Fish>().fishSpeed = fishSpeed;
        }
    }

    private void RemoveAllFish()
    {
        if (fishList != null)
        {
            for (int i = 0; i < fishList.Count; i++)
            {
                if (fishList[i] != null)
                {
                    Destroy(fishList[i]);
                }
            }
        }

        fishList = new List<GameObject>();
    }

    private void OnDrawGizmos()
    {
        Vector3 center = this.transform.position;
        Vector3 dir = Vector3.forward;
        float angleRange = 30f;
        float radius = 2f;

        GizmosExtensions.DrawWireArc(center, dir, angleRange, radius);
    }
}

using UnityEngine;

public class GizmosExtensions
{
    private GizmosExtensions() { }

    public static void DrawWireArc(Vector3 position, Vector3 dir, float anglesRange, float radius, Color color, float maxSteps = 20)
    {
        Gizmos.color = color;

        var srcAngles = GetAnglesFromDir(position, dir);
        var initialPos = position;
        var posA = initialPos;
        var stepAngles = anglesRange / maxSteps;
        var angle = srcAngles - anglesRange / 2;
        for (var i = 0; i <= maxSteps; i++)
        {
            var rad = Mathf.Deg2Rad * angle;
            var posB = initialPos;
            posB += new Vector3(radius * Mathf.Cos(rad), radius * Mathf.Sin(rad), 0);

            Gizmos.DrawLine(posA, posB);

            angle += stepAngles;
            posA = posB;
        }
        Gizmos.DrawLine(posA, initialPos);
    }


    /// <summary>
    /// Draws a wire arc.
    /// </summary>
    /// <param name="position"></param>
    /// <param name="dir">The direction from which the anglesRange is taken into account</param>
    /// <param name="anglesRange">The angle range, in degrees.</param>
    /// <param name="radius"></param>
    /// <param name="maxSteps">How many steps to use to draw the arc.</param>
    public static void DrawWireArc(Vector3 position, Vector3 dir, float anglesRange, float radius, float maxSteps = 20)
    {
        var srcAngles = GetAnglesFromDir(position, dir);
        var initialPos = position;
        var posA = initialPos;
        var stepAngles = anglesRange / maxSteps;
        var angle = srcAngles - anglesRange / 2;
        for (var i = 0; i <= maxSteps; i++)
        {
            var rad = Mathf.Deg2Rad * angle;
            var posB = initialPos;
            posB += new Vector3(radius * Mathf.Cos(rad), 0, radius * Mathf.Sin(rad));

            Gizmos.DrawLine(posA, posB);

            angle += stepAngles;
            posA = posB;
        }
        Gizmos.DrawLine(posA, initialPos);
    }

    static float GetAnglesFromDir(Vector3 position, Vector3 dir)
    {
        var forwardLimitPos = position + dir;
        var srcAngles = Mathf.Rad2Deg * Mathf.Atan2(forwardLimitPos.z - position.z, forwardLimitPos.x - position.x);

        return srcAngles;
    }
}

using System.Collections;
using System.Collections.Generic;
using Unity.MLAgents;
using Unity.MLAgents.Actuators;
using Unity.MLAgents.Sensors;
using UnityEngine;

public class PenguinAgent : Agent
{
    [Tooltip("How fast the agent moves forward")]
    public float moveSpeed = 5f;

    [Tooltip("How fast the agent turns")]
    public float turnSpeed = 180f;

    [Tooltip("Prefab of the heart that appears when the baby is fed")]
    public GameObject heartPrefab;

    [Tooltip("Prefab of the regurgitated fish that appears when the baby is fed")]
    public GameObject regurgitatedFishPrefab;

    private PenguinArea penguinArea;
    new private Rigidbody rigidbody;
    private GameObject baby;
    private bool isFull; // If true, penguin has a full stomach

    public override void Initialize()
    {
        base.Initialize();
        penguinArea = GetComponentInParent<PenguinArea>();
        baby = penguinArea.penguinBaby;
        rigidbody = GetComponent<Rigidbody>();
    }
    public override void OnActionReceived(ActionBuffers actionBuffers)
    {
        // Convert the first action to forward movement
        float forwardAmount = actionBuffers.DiscreteActions[0];

        // Convert the second action to turning left or right
        float turnAmount = 0f;
        if (actionBuffers.DiscreteActions[1] == 1f)
        {
            turnAmount = -1f;
        }
        else if (actionBuffers.DiscreteActions[1] == 2f)
        {
            turnAmount = 1f;
        }

        // Apply movement
        rigidbody.MovePosition(transform.position + transform.forward * forwardAmount * moveSpeed * Time.fixedDeltaTime);
        transform.Rotate(transform.up * turnAmount * turnSpeed * Time.fixedDeltaTime);

        // Apply a tiny negative reward every step to encourage action
        if (MaxStep > 0) AddReward(-1f / MaxStep);
    }

    public override void Heuristic(in ActionBuffers actionsOut)
    {
        int forwardAction = 0;
        int turnAction = 0;
        if (Input.GetKey(KeyCode.W))
        {
            // move forward
            forwardAction = 1;
        }
        if (Input.GetKey(KeyCode.A))
        {
            // turn left
            turnAction = 1;
        }
        else if (Input.GetKey(KeyCode.D))
        {
            // turn right
            turnAction = 2;
        }

        // Put the actions into the array
        actionsOut.DiscreteActions.Array[0] = forwardAction;
        actionsOut.DiscreteActions.Array[1] = turnAction;
    }
    public override void OnEpisodeBegin()
    {
        isFull = false;
        penguinArea.ResetArea();
    }
    public override void CollectObservations(VectorSensor sensor)
    {
        // Whether the penguin has eaten a fish (1 float = 1 value)
        sensor.AddObservation(isFull);

        // Distance to the baby (1 float = 1 value)
        sensor.AddObservation(Vector3.Distance(baby.transform.position, transform.position));

        // Direction to baby (1 Vector3 = 3 values)
        sensor.AddObservation((baby.transform.position - transform.position).normalized);

        // Direction penguin is facing (1 Vector3 = 3 values)
        sensor.AddObservation(transform.forward);

        // 1 + 1 + 3 + 3 = 8 total values
    }
    private void OnCollisionEnter(Collision collision)
    {
        if (collision.transform.CompareTag("fish"))
        {
            // Try to eat the fish
            EatFish(collision.gameObject);
        }
        else if (collision.transform.CompareTag("baby"))
        {
            // Try to feed the baby
            RegurgitateFish();
        }
    }
    private void EatFish(GameObject fishObject)
    {
        if (isFull) return; // Can't eat another fish while full
        isFull = true;

        penguinArea.RemoveSpecificFish(fishObject);

        AddReward(1f);
    }

    private void RegurgitateFish()
    {
        if (!isFull) return; // Nothing to regurgitate
        isFull = false;

        // Spawn regurgitated fish
        GameObject regurgitatedFish = Instantiate<GameObject>(regurgitatedFishPrefab);
        regurgitatedFish.transform.parent = transform.parent;
        regurgitatedFish.transform.position = baby.transform.position;
        Destroy(regurgitatedFish, 4f);

        // Spawn heart
        GameObject heart = Instantiate<GameObject>(heartPrefab);
        heart.transform.parent = transform.parent;
        heart.transform.position = baby.transform.position + Vector3.up;
        Destroy(heart, 4f);

        AddReward(1f);

        if (penguinArea.FishRemaining <= 0)
        {
            EndEpisode();
        }
    }


}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Fish : MonoBehaviour
{
    [Tooltip("The swim speed")]
    public float fishSpeed;

    private float randomizedSpeed = 0f;
    private float nextActionTime = -1f;
    private Vector3 targetPosition;

    private void FixedUpdate()
    {
        if (fishSpeed > 0f)
        {
            Swim();
        }
    }

    private void Swim()
    {
        // If it's time for the next action, pick a new speed and destination
        // Else, swim toward the destination
        if (Time.fixedTime >= nextActionTime)
        {
            // Randomize the speed
            randomizedSpeed = fishSpeed * UnityEngine.Random.Range(.5f, 1.5f);

            // Pick a random target
            targetPosition = PenguinArea.ChooseRandomPosition(transform.parent.position, 100f, 260f, 2f, 13f);

            // Rotate toward the target
            transform.rotation = Quaternion.LookRotation(targetPosition - transform.position, Vector3.up);

            // Calculate the time to get there
            float timeToGetThere = Vector3.Distance(transform.position, targetPosition) / randomizedSpeed;
            nextActionTime = Time.fixedTime + timeToGetThere;
        }
        else
        {
            // Make sure that the fish does not swim past the target
            Vector3 moveVector = randomizedSpeed * transform.forward * Time.fixedDeltaTime;
            if (moveVector.magnitude <= Vector3.Distance(transform.position, targetPosition))
            {
                transform.position += moveVector;
            }
            else
            {
                transform.position = targetPosition;
                nextActionTime = Time.fixedTime;
            }
        }
    }
}
